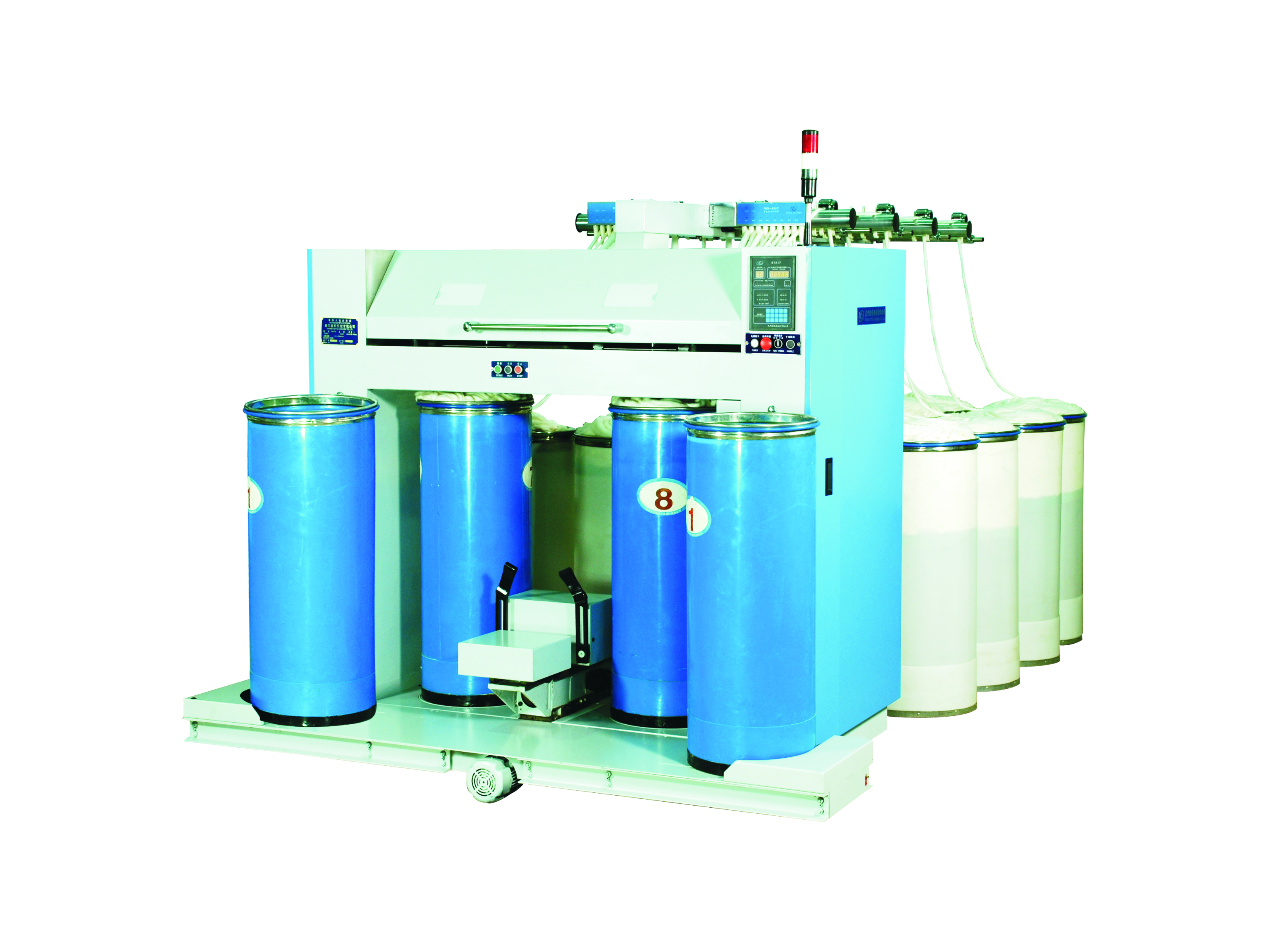

FA317A
Salient Features:
1.Rational drafting system, compact driving system, higher speed, perfect sliver guiding mechanism and advanced cleaning system.
2.Mechanical stop and eight-channel photoelectric.
3.Top cleaning adopts floating metal bar or rotary flannelette. Technical specifications:
| Range of Application | Fiber length up to 76mm combed and carded cotton, chemical fiber and blends | |
| Number of Delivery | Two | |
| Output Speed | 311~700m/min | |
| Doubling | 6~8 | |
| Roller Dia. | Top Roller | ￠37 ￠37 ￠37mm |
| Bottom Roller | ￠45 ￠30 ￠30mm | |
| Drafting System | 3 over 3 double zone curvilinear drafting system with upholding pressure bar | |
| Total Draft (between 1st and 3rd rollers) | 5.427~9.849 | |
| Can Size | Input | ￠400 ￠500 ￠600 ￠800 ￠900 ￠1000mm Height 900 or 1100mm |
| Output | ￠350 ￠400 ￠500mm Height 900 or 1100mm | |
| Feeding Form | Individual sliver pressure roller overhead creel lengthwise positive feeding in synchronous drive | |
| Main Motor | 3.5Kw | |
| Power of suction blower | 1.5Kw | |
Product components：
